Laboy Glass Steam Distillation Apparatus Kit Distilling Set with Biomass Flask Essential Oil Extraction Maker Organic Chemistry Lab Glassware Equipment 25pcs

Laboy Glass Steam Distillation Apparatus Kit Distilling Set with Biomass Flask Essential Oil Extraction Maker Organic Chemistry Lab Glassware Equipment 25pcs

Regular price $159.00

Regular price $0.00

Sale price $159.00

Sale Sold out
Style
Bullet:
  • Steam distillation is a type of distillation to separate the temperature-sensitive materials,such as natural aromatic compounds.Steam or water is added to the distillation apparatus,lowering the boiling points of the compounds,this kit with SKU HMK21 is the type of adding water to the distillation flask containing the plant material or organic mixture.
  • This steam distillation apparatus is a modified simple distillation apparatus by adding a claisen adapter between the distillation flask and the 3 way distillation head.The claisen adapter provides a second entry into the distillation flask to accommodate the addition of extra water without stopping the distillation via a separatory funnel as the additional funnel.
  • This water and steam distillatin kit includes a 500mL round bttom flask ,a 500mL flat bottom flask,a claisen adapter,a 3 way distillation adapter,a 125ml separatory funnel,a west condenser,a take off adapter ,16ft rubber tubing,a cork stand ,7pcs 24# plastic joint clip,all the glassware parts are with 24/40 joints.
  • Laboy glassware are all made of high quality boroslicate glass according to ASTM E438,heavy wall design,durable and reusable.The ground joints are precisely grounded according to US standard.
  • 100% 90 DAY MONEY BACK GUARANTEE simply return for a full refund,no question asked

Product Description:

Steam distillaton is used to separate volatile compounds from a complex mixture.It can also be used to separate an organic product from an aqueous reaction mixture containing inorganic salts.Steam Distillation is the most popular method used to extract and isolate essential oils from plants for use in natural products.

The glassware parts in this kit are all with 24/40 joints.

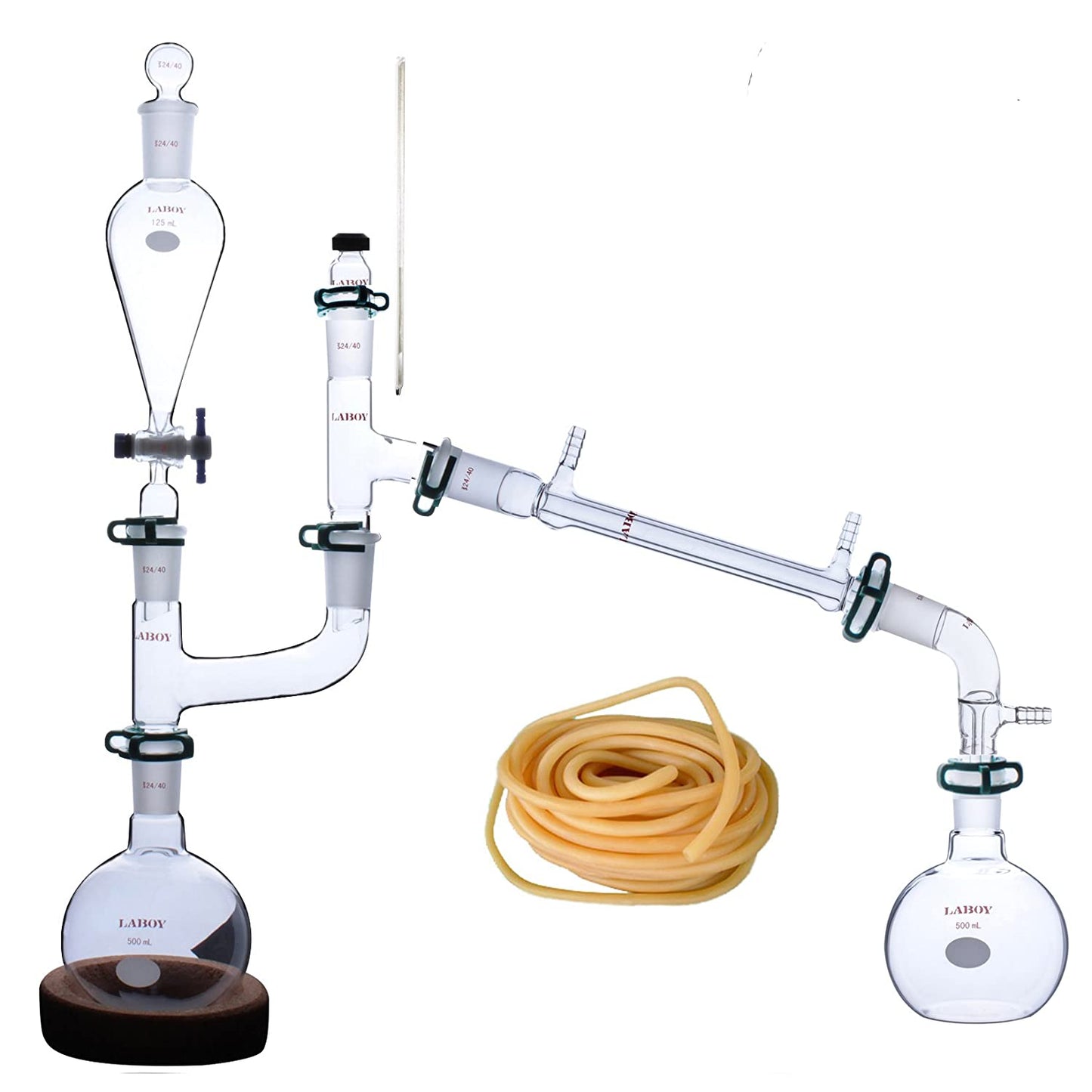

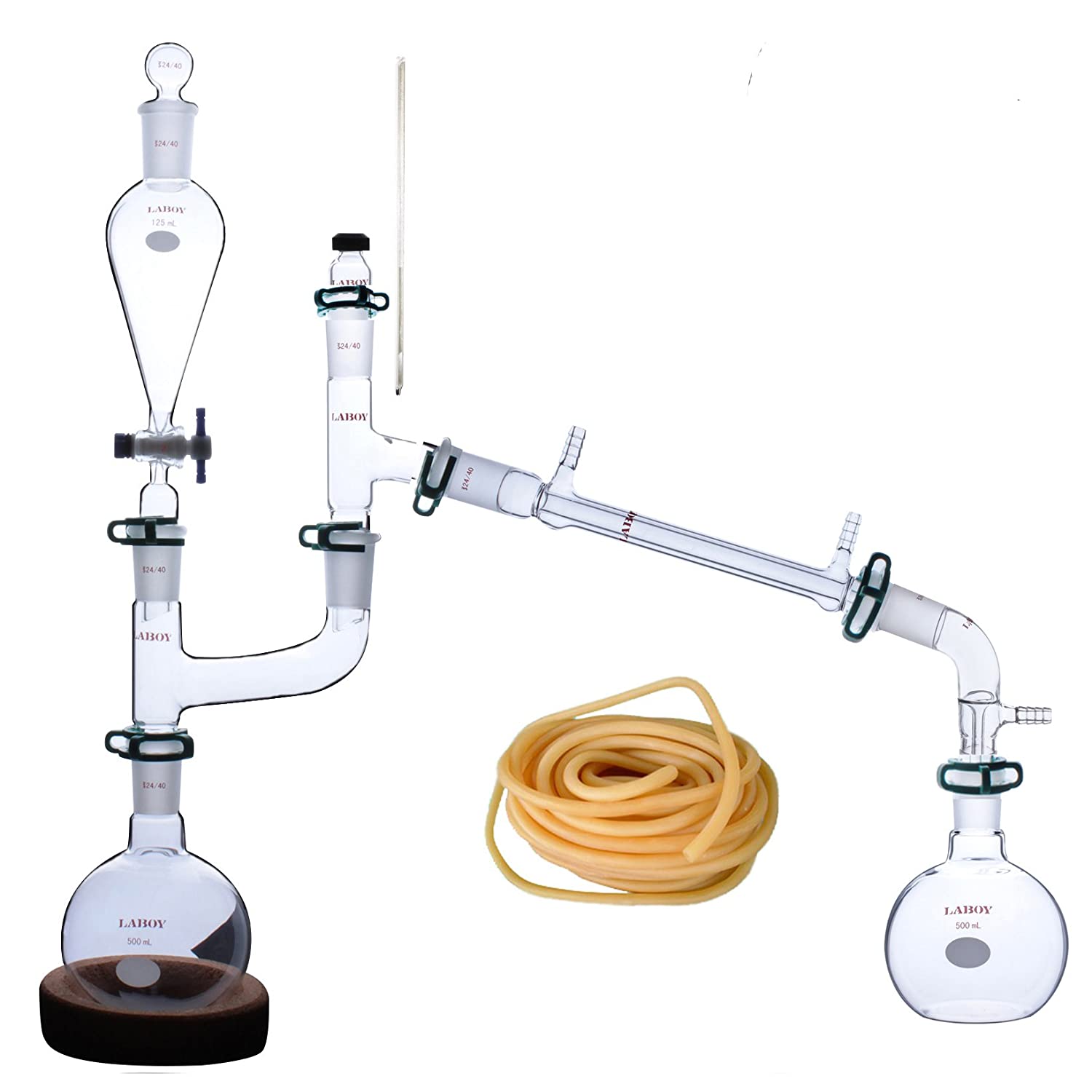

The kit includes:
1.500mL round bottom boiling flask with 24/40 joint used as a distillation flask, the plant material and water were put in.1pcs.
2.3 way claisen adapter with 24/40 joints, one of the Top joints is used to connect a addition funnel, the other one is connected with a biomass flask.1pcs.
3.125mL separator funnel with 24/40 joints at Top and bottom, to be used as an addition funnel in this setup, which can transfer water to the boiling flask if necessary.1pcs
4.3 way distillation adapter with 24/40 joints, to be used as a distill head in this setup, connects with a west condenser.1pcs
5.West condenser with 24/40 joints and 200mm in jacket length, with 10mm glass hose connection accommodating 8mm I.D rubber tubing for cold water in and out, condenses the vapor from distillation.1pcs.
6.Thermometer adapter with 24/40 joint and a compression cap accommodating a glass thermometer.1pcs.
7.Kerosene thermometer temp range from 0 to 200 degree C.
8.Vacuum take-off adapter with a 10mm glass hose connection, with 24/40 joint, connects the condenser and receiving flask.1pcs
9.500mL flat bottom flask with 24/40 joint, used as a receiving flask.1pcs.
10.Cork stand for 500mL flask.1pcs.
11.Plastic joint clip for connecting and fixing 24/40 outer and inner joint.7pcs.
12.Penny head hollow glass stopper with 24/40 joint.1pcs.
13.16ft rubber tubing with 8mm ID.1pcs.
