Soxhlet Extraction Apparatus Set 55/50 Lab Glassware Distilling Apparatus

Jointed Lab Glassware

Soxhlet Extraction Apparatus Set 55/50 Lab Glassware Distilling Apparatus

Availability: In Stock
  • Vendor:Scienmart
  • Category: Laboratory kits
$135.34

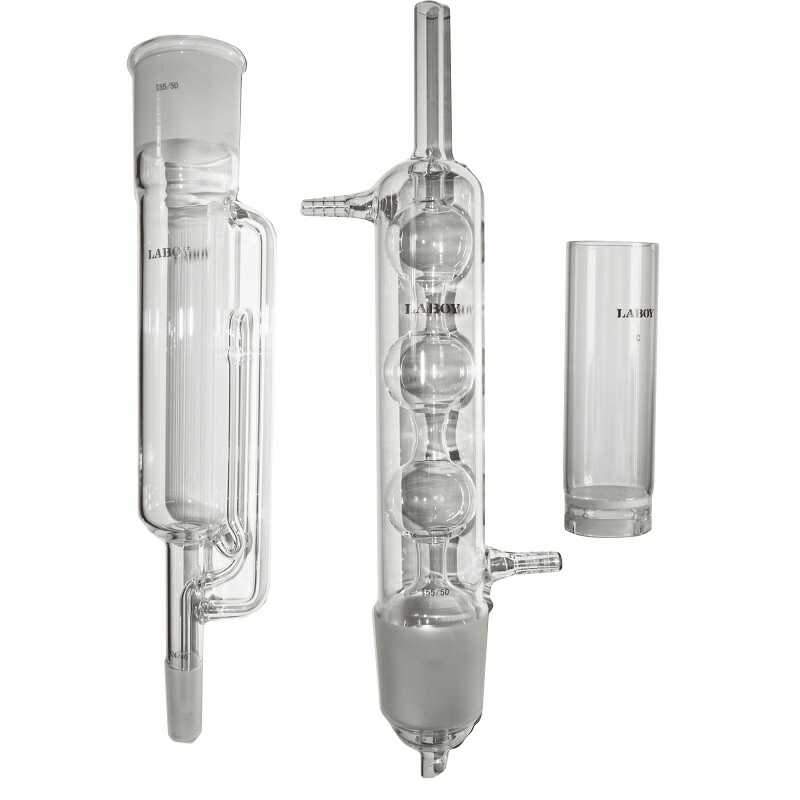

Soxhlet Extraction Apparatus Set with 55/50 upper and 24/40 lower joint including:

1.Condenser ,allihn relux condenser with a water cooled inner drip joint at bottom ,the jacket length is 300mm,Overall height is 365mm,the joint is 55/50.

2.Extractor body,with 55/50 upper joint and 24/40 lower joint,which is placed upon a boiling flask, usually a 500ml flat bottom flask.

3.Extraction thimble,glass, O.D.X Height is 45x130 mm,The pore diameter for the sealed in glass fritted is from 20 to 35 ?m.

The thimble is loaded into the main chamber of the Soxhlet extractor,inside which the source material containing the compound to be extracted is placed.
